Instruction Manual

Product Details

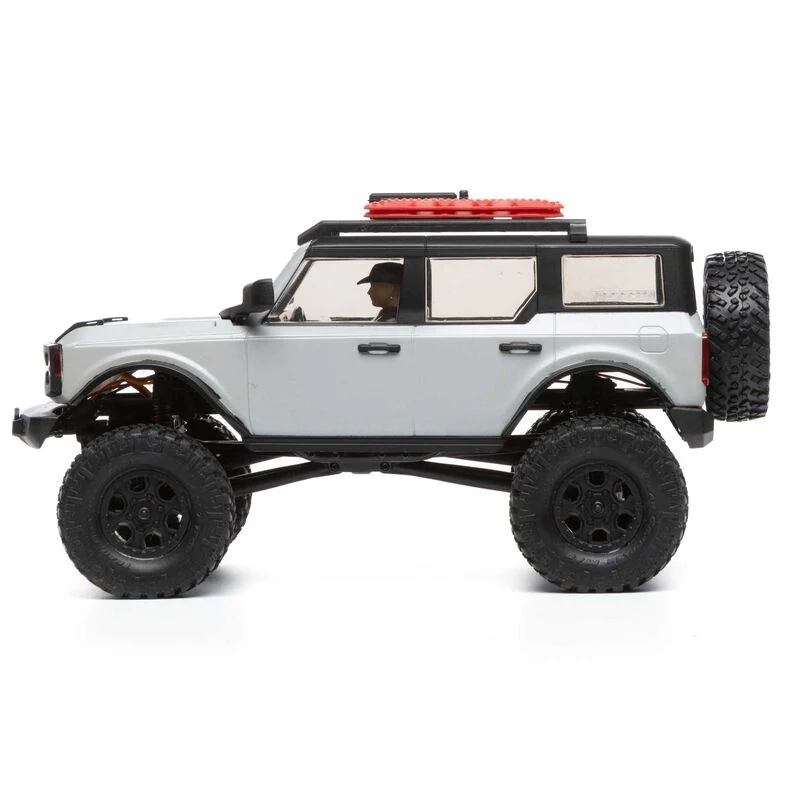

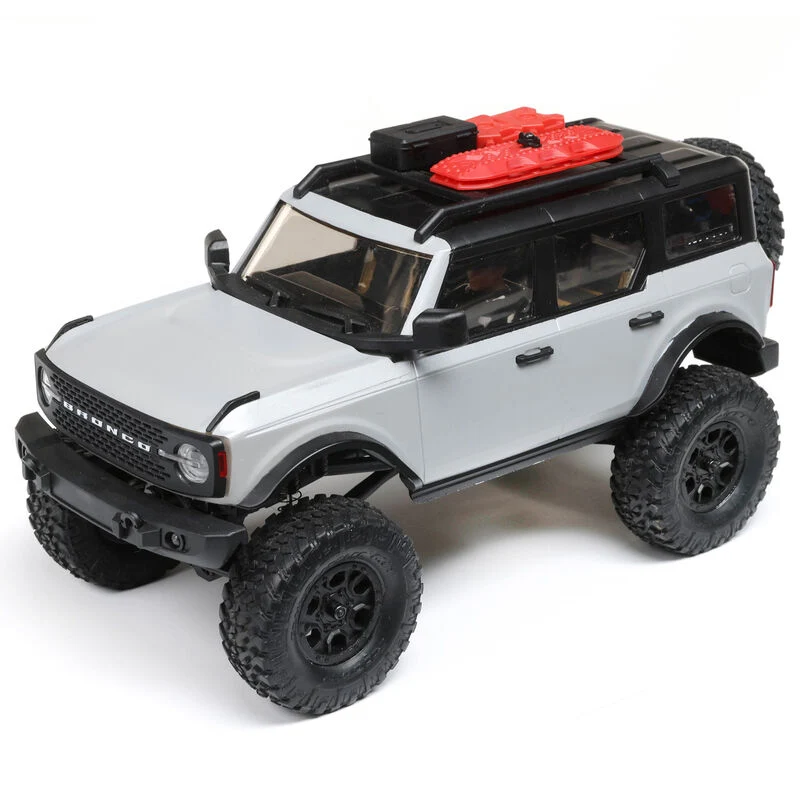

Axial® reaches a new peak in 1/24 scale realism with this officially licensed Ford Bronco 4WD that tops the proven SCX24™ platform with a highly detailed ABS hard body. Ideal for indoor or outdoor trails, it’s a must for Ford fans and RC enthusiasts of all ages!

Key Features

Factory-assembled and ready-to-run, with 3-channel radio, 030 brushed motor, servo, ESC/receiver unit and “AA” transmitter batteries included
Offcially licensed Ford Bronco ABS hard body with molded door handles, mirrors, roof rails, and a tire mount with spare tire
Bonus second decal sheet for optional customization
Nitto Trail Grappler M/T tires mounted on Factory Ford Wildtrak wheels
Working lights in front, with molded lenses on all four corners of the body

In The Box

(1) Axial® SCX24™ Ford Bronco 1/24 Scale 4WD RTR
(1) Horizon Hobby® 2.4GHz 3-Channel Radio System
(1) Axial® AS-1 Micro Servo
(1) Horizon Hobby® ESC/Receiver Combo
(1) Dynamite® USB LiPo Charger
(1) Dynamite® 88T 030-Size Brushed Electric Motor With Pinion
(1) Dynamite® 350mAh 2S 30C 7.4V LiPo Battery
(4) AA Batteries for Transmitter
(2) Decal Sheets
(1) Product Manual

Needed to Complete

Nothing — everything is included in the box!

Features

Factory-assembled and ready-to-run, with 3-channel radio, 030 brushed motor, servo, ESC/receiver unit and "AA" transmitter batteries included
Officially licensed Ford Bronco ABS hard body with molded door handles, mirrors, roof rails, and a tire mount with spare tire
Bonus second decal sheet for optional customization
Nitto Trail Grappler M/T tires mounted on Factory Ford Wildtrak wheels
Working lights in front, with molded lenses on all four corners of the body
True full-time 4-wheel drive

Durable solid axle front and rear suspension and coilover shocks for optimal handling and crawling performance
Worm drive gears in front and rear differentials increase ground clearance
Sturdy steel C-channel frame rails with bracing for added strength and proper alignment
Durable steel axles provide strength and durability to match tough climbs and rough trails
2-Year limited warranty (see product manual for details)

Axial^® Scales New Peaks in SCX24^™ Realism!

The first sport utility vehicle developed by Ford Motor Company, the Bronco enjoyed an uninterrupted production run that lasted five generations from 1966 through 1996. After a short absence, it returned to the Ford lineup in 2021 — and this new generation has quickly re-established the Bronco as one of the auto industry's premier "go-to" off-road vehicles.

Now every auto enthusiast who admires the full-size Bronco can own and drive their own officially licensed, 1/24 scale RC version: the Axial^® SCX24^™ Ford Bronco 4WD RTR.

No previous radio control experience is needed because it's easy to drive, fully assembled, and ready-to-run. The truck is built on the proven Axial^® SCX24^™ chassis, so even the most dedicated RC crawling fan will be proud to have it in their lineup. And serious scale modelers will be excited to find that this Ford Bronco not only looks great and performs well, but also brings a whole new level of scale realism to the SCX24^™ platform.

With the SCX24^™ Ford Bronco, Axial^® introduces an exceptionally detailed and extra-durable ABS hard body with molded door handles, mirrors, and roof rails. There's also a mounted spare tire, plus optional second decal sheet for personalizing the finish. Complementing the detail of the scale Ford Bronco body, Axial^® includes officially licensed Factory Ford Wildtrak wheels and Nitto Trail Grappler M/T tires.

The SCX24^™ Ford Bronco 4WD makes any spot the perfect setting for RC adventures. If you're stuck at work, go crawling on your desk. A messy room becomes an ideal obstacle course. Test your skills on an indoor "crawl course table" or take your SCX24^™ Ford Bronco outdoors, where its water-resistant electronics are safe from the elements. You can set up an exciting trail in minutes with a few holes, twigs, and rocks.

Whatever course you follow, the SCX24^™ chassis meets every challenge with full-time 4-wheel drive, a trail-taming 3-link front/4-link rear suspension, and much more. Realistic steel frame rails stand up to hard knocks. Worm gears on the axles increase ground clearance. Steel front and rear axles, front stub axles and steel dogbones let you crawl and climb with confidence. Power is supplied by a Dynamite^® 88T 030-size motor and 2S LiPo battery. A 3-channel 2.4GHz radio system is included for precise, dependable control.

The Ford Bronco comes complete with everything needed to hit the trails right out of the box — transmitter, receiver, ESC, motor, servo, batteries, and USB charger. The authentic scale body is available in three color options based on current Ford Bronco factory colors. Enjoy the view from the peak of 1/24 scale realism with the Axial^® SCX24^™ Ford Bronco 4WD!

DETAILED SCALE FORD BRONCO HARD BODY

The Axial^® SCX24 Ford Bronco achieves a whole new level of scale realism with its officially licensed, exceptionally detailed, and extra-durable ABS hard body with molded door handles, mirrors, and roof rails. There's also a mounted spare tire, plus optional second decal sheet for personalizing the finish.

STEEL C-CHANNEL CHASSIS FRAME RAILS

Just like the 1/10 scale SCX10^™ platform, the SCX24^™ chassis features rugged and sturdy steel C-channel frame rails with bracing to keep everything intact and aligned.

DYNAMITE^® BRUSHED MOTOR

The included Dynamite^® 88T 030-size brushed electric motor provides the right amount of torque for making steep climbs. It's mated to a steel motor mount to keep flex to a minimum and help protect the gears.

WORM GEARS

The front and rear differentials each house a worm screw and worm gear setup to get the power to the axles and create higher ground clearance.

FRONT AND REAR SOLID AXLE HOUSINGS

The front and rear axles consist of a two piece, molded composite solid axle design. For optimal handling, the SCX24^™ suspension features a three-link front and four-link rear setup.

DURABLE STEEL AXLES

Steel front and rear axles, front stub axles and steel dogbones provide strength and durability needed to keep running with confidence during tough climbs and over rough trails.

SPLINED DRIVE SHAFTS

The front and rear drive shafts are splined and sleeved to allow for maximum suspension travel while keeping the power to the wheels.

COILOVER SHOCK ABSORBERS

Even at this small scale, the combination of coilover shocks with simulated reservoirs and durable composite suspension links delivers the crawling performance you expect from an Axial^® vehicle.

LIGHTS AND MOLDED LENSES

For maximum realism, working lights are included on the front corners of the scale Ford Bronco body and in the front bumper. All four corners of the body feature molded lenses.

4-LINK REAR SUSPENSION

The rear suspension geometry uses a 4-link design which is optimized to reduce axle steer and torque twist.

FACTORY FORD WILDTRAK WHEELS & NITTO TRAIL GRAPPLER M/T TIRES

Complementing the exceptional detail of the scale hard body, Axial^® has outfitted the SCX24^™ Ford Bronco with officially licensed Wildtrak wheels and Nitto Trail Grappler M/T tires. They offer a fantastic blend of off-road performance while retaining excellent composure for on-road use.

HINGED BODY SYSTEM

The hinged body system provides easy access to on-board components. Its hook-and-loop hinge design lets you reach the chassis and battery quickly by simply swinging the body up.

FULL BALL BEARINGS

Just because the SCX24^™ is small doesn't mean its features follow suit. There are no bushings here — the drivetrain spins freely on sealed cartridge bearings throughout the entire vehicle.

AXIAL^® AS-1 SERVO

Mounted just above the front axle is the Axial^® AS-1 servo, with a servo saver that allows for steering accuracy while protecting the servo gears in the event of a bind or impact.

Product Specifications

Front Track	3.938 in (100.0mm)
Inner Tire / Outer Wheel Diameter	1.0 in
Product Width	3.875" (98 mm)
Radio	Included
Body	Axial® Ford Bronco Hard Body
Pinion	10T
Scale	1/24
Tire Tread	Nitto Trail Grappler M/T Tires
Vehicle Type	Rock Crawler
Receiver	Included
Shock Type	Coil-Over .9-1.3 in (24-33.4mm), Composite
Battery	Included
Motor Size	030 Brushed Electric Motor
Product Length	8.75" (222 mm)
Spur Gear	55T
Suspension	Solid Axle, Front and Rear
Speed Control	Included
Wheelbase	5.19" (132 mm)
Motor Type	Brushed
Rear Track	3.938 in (100.0mm)
Charger	Included
Differential	Worm Gear 16T/4T
Ball Bearings	Full
Chassis	Stamped Steel Chassis Rails
Completion Level	Ready-To-Run
Drivetrain	4WD
Drive Type	Forward/Brake/Reverse
Product Height	4.625" (117 mm)
Power Type	Electric
Servos	Included

1/20 and 1/24 Crawlers/Buggy

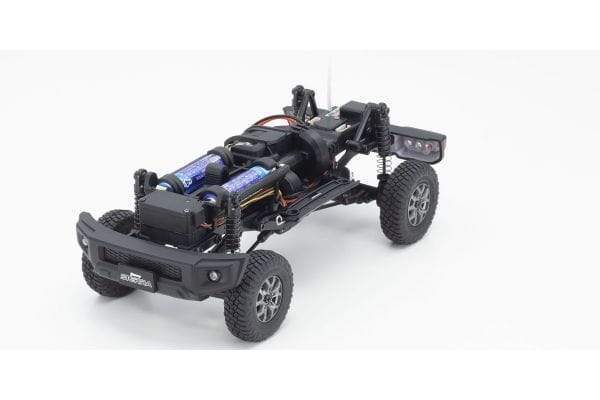

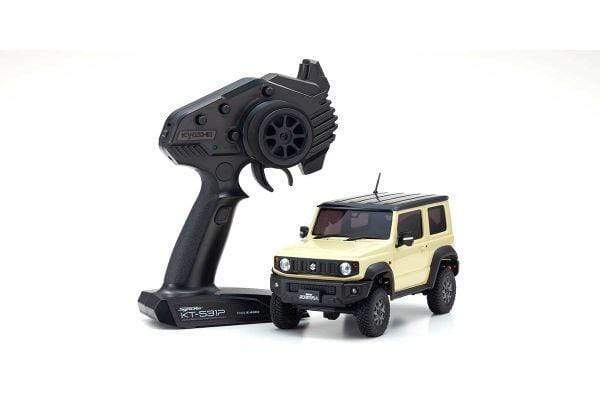

Kyosho Mini-Z 4X4 Suzuki Jimny Sierra Chiffon Ivory Ready Set
