1/30 SCX30 Chevrolet K10 4X4 RTR Brushed Rock Crawler (Battery & Charger Included), Green Overview

The Axial team had two priorities in mind when creating the SCX30 RC crawler platform. It had to be conveniently small but also deliver high performance, whether adventuring inside or on outdoor trails. The SCX30 Chevrolet K10 RTR accomplishes both.

At 1/30 scale, this little K10 is the perfect size for maneuvering over a desktop as well as for crawling across dirt and rock trails. It offers oversized performance for a very affordable price, with features and capabilities you’d never expect from a sub-micro crawler.

The Chevy K10 includes an angled skid plate to let you easily slide over challenging obstacles - a feature usually found only in competition crawlers. Ramped axle housings and high clearance links also help to avoid dragging and hangups. Climbing stability on the rocks gets a boost from the chassis’ forward weight bias. Other performance features include damped 25mm shocks, full ball bearings, a powerful Axial 65T motor, and dependable Spektrum electronics that are mounted low in the chassis for the optimal center of gravity.

Topping off that trail-ready engineering is a Chevy K10 ABS hard body that proves detailed scale realism can come in any size. An authentic recreation of the full-size truck, the body is complemented by front and rear LEDs and officially licensed Interco Super Swamper tires. These soft compound tires with foam inserts provide all the traction needed for outdoor trail action or for crawling across a desktop, table, or cluttered floor. You can turn any space into your personal Rubicon trail!

If you’re among the many Axial SCX24 crawling fans, this K10 sub-micro rig will be an essential addition to your collection. It offers all Axial enthusiasts an exciting and affordable new way to adventure. For newcomers to RC rock crawling, the simplicity and value of the complete, ready-to-run package makes it an ideal way to join the fun.

Break new trails, not the bank, with the small rock crawler that delivers big on performance - the Axial SCX30 Chevrolet K10 RTR.

Axial SCX30 sub-micro crawling platform
Interco Super Swamper crawler tires on classic 5-slot mag wheels
High-performance chassis with angled skid plate and forward weight bias
Spektrum SLT2 2.4GHz radio, 2S LiPo battery, and USB-C charger
Officially licensed Chevy K10 scale ABS hard body
Ready to run - nothing else required

1/30 SCX30 Chevrolet K10 4X4 RTR Brushed Rock Crawler (Battery & Charger Included), Green Features

Axial SCX30 sub-micro crawling platform
High-performance chassis with full-time 4-wheel drive
Angled skid plate and ramped axle housings to slide over obstacles
High-clearance rear links to avoid dragging and hangups
Forward weight bias for climbing stability
Easy-access transmission
Compatible with SCX24 aftermarket gears for different ratios
Officially licensed Chevy K10 scale ABS hard body
Molded parts for body customizing
Clipless body mounting for easy chassis access
Clipless body mounting for easy chassis access
Axial 65T brushed motor
Low mounted electronics for optimal CG
Interco Super Swamper crawler tires on classic 5-slot mag wheels
Damped 25mm shocks
Full ball bearings
Spektrum SLT2 2.4GHz radio system
Spektrum 7.4V 160mAh 2S 30C LiPo battery
Spektrum 0.5A USB 2S charger
Ready to run - nothing else requ

HIGH-PERFORMANCE CHASSIS

HIGH-PERFORMANCE CHASSIS

The Axial SCX30 Chevy K10 RTR has a high-performance chassis with an angled skid plate to help you slide over challenging obstacles - a feature usually found only in comp crawlers. Ramped axle housings and high clearance links also help to avoid dragging and hangups, while the forward weight bias improves climbing stability.

EASY-ACCESS TRANSMISSION

EASY-ACCESS TRANSMISSION

The transmission of the SCX30 platform is easily accessible for maintenance and tuning. Optional gears available for the SCX24 are compatible for using different ratios.

OFFICIALLY LICENSED CHEVY K10 ABS HARD BODY

OFFICIALLY LICENSED CHEVY K10 ABS HARD BODY

Though small, the SCX30 Chevy K10 RTR doesn't come up short on scale realism. The injection molded ABS hard body is loaded with details for authentic scale looks. Front and rear LEDs are included, as are molded parts for body customizing.

CLIPLESS BODY MOUNTING

CLIPLESS BODY MOUNTING

The clipless body mounting system allows fast, easy access to the chassis for battery replacement and general maintenance.

OFFICIALLY LICENSED INTERCO® SUPER SWAMPER TIRES

OFFICIALLY LICENSED INTERCO® SUPER SWAMPER TIRES

Interco Super Swamper crawler tires ensure that the SCX30 Chevy K10 RTR has all the traction it needs, whether it's crawling across a desktop or outdoors over rock and dirt trails. The soft compound tires also include factory-installed foam inserts, perfectly combining scale looks with unmatched rock crawling performance.

FULL BALL BEARINGS

FULL BALL BEARINGS

The SCX30 Chevy K10 may be small, but its high-quality features deliver big-league performance and value. Rather than cutting costs with bushings, for example, the drivetrain spins freely on sealed ball bearings throughout the entire rig.

SPEKTRUM SLT2 2.4GHz TRANSMITTER

SPEKTRUM SLT2 2.4GHz TRANSMITTER

The included Spektrum SLT2 transmitter is designed to help all drivers succeed on the trails. Its throttle limiting feature can limit the rig’s maximum available speed to 50% or 75% until you’re ready for it all. Four AA batteries are included.

SPEKTRUM ELECTRONICS

SPEKTRUM ELECTRONICS

The factory-installed on-board electronics are mounted low in the chassis to improve the center of gravity. The ready-to-run package comes complete with a powerful Spektrum 2S LiPo battery and 0.5A USB-C charger for fast, easy, and safe battery recharging.

1/30 SCX30 Chevrolet K10 4X4 RTR Brushed Rock Crawler (Battery & Charger Included), Green Product Specs

·

· Approximate Assembly Time: No Assembly Required

· Ball Bearings: Full Ball Bearings

· Battery: Included

· Body: Axial® Chevy K10

· Charger: Included

· Chassis: Composite Chassis

· Completion Level: Ready-To-Run

· Connector Type: JST PH2.0 2P

· Differential: Locked

· Drive Type: Forward/Reverse

· Drivetrain: 4WD

· Front Shock Spring Rate: Damped 25mm Shocks

· Gear Ratio: 131.58

· Internal Gear Ratio: 16.36

· LiPo Compatibility: 2S

· Make: Chevy

· Motor Size: Axial 65T motor

· Motor Type: Brushed

· Pinion: 11T

· Power Type: Electric

· Product Height: 2.95" (75 mm)

· Product Length: 6.33" (161 mm)

· Product Width: 3.02" (77 mm)

· Radio: Included

· Receiver: Included

· Scale: 1/30

· Tire Type: Interco Super Swamper crawler tires

· Vehicle Size: Micro

· Vehicle Type: Rock Crawler

· Wheelbase: 3.88" (99 mm)

1/30 SCX30 Chevrolet K10 4X4 RTR Brushed Rock Crawler (Battery & Charger Included), Green Video Overview

RC crawling is easier and more affordable than ever with the ready-to-run Axial SCX30 Chevrolet K10 4X4. With its scale ABS hard body, high-performance chassis, and Spektrum electronics, this 1/30 scale rig delivers big on realism and capabilities.

Product Details

In The Box

Axial SCX30 Chevy K10 4X4 Rock Crawler RTR

Assembled SCX30 chassis, drivetrain, and suspension x1

Spektrum SLT2 2.4GHz radio transmitter x1

Spektrum SCX30 SLT Brushed 2-in-1 ESC/Receiver (SPMXSE3225RX, installed) x1

Axial 65T motor (AXI-3066, installed) x1

Spektrum 7.4V 160mAh 2S 30C LiPo battery (SPMX-1122) x1

USB 2S Charger: 0.5A JST-XH 3P x1

AA transmitter batteries x4

Instruction manual

Needed to Complete

Absolutely nothing!

Axial Kits

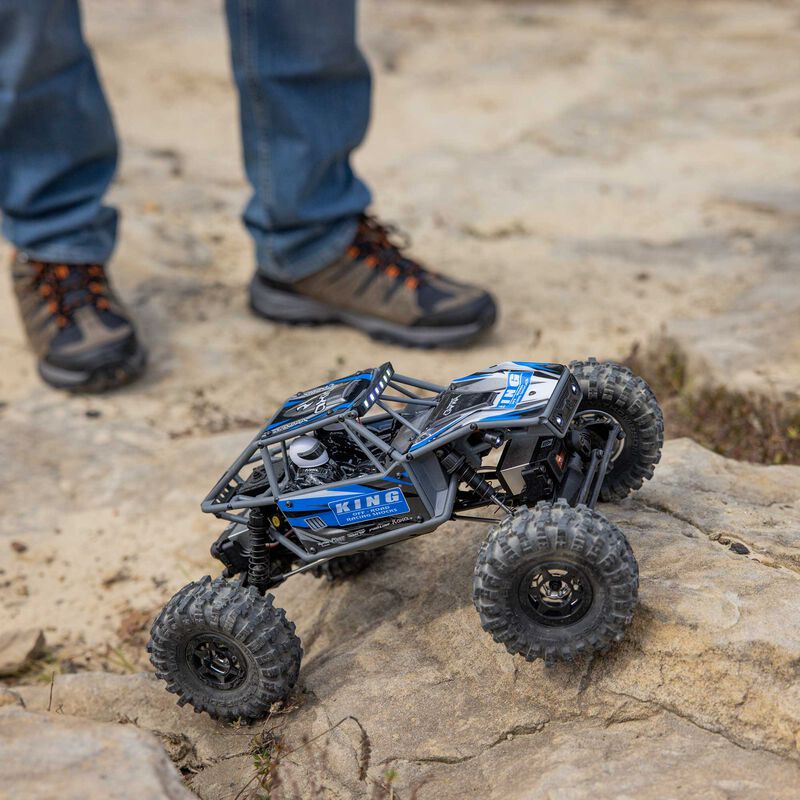

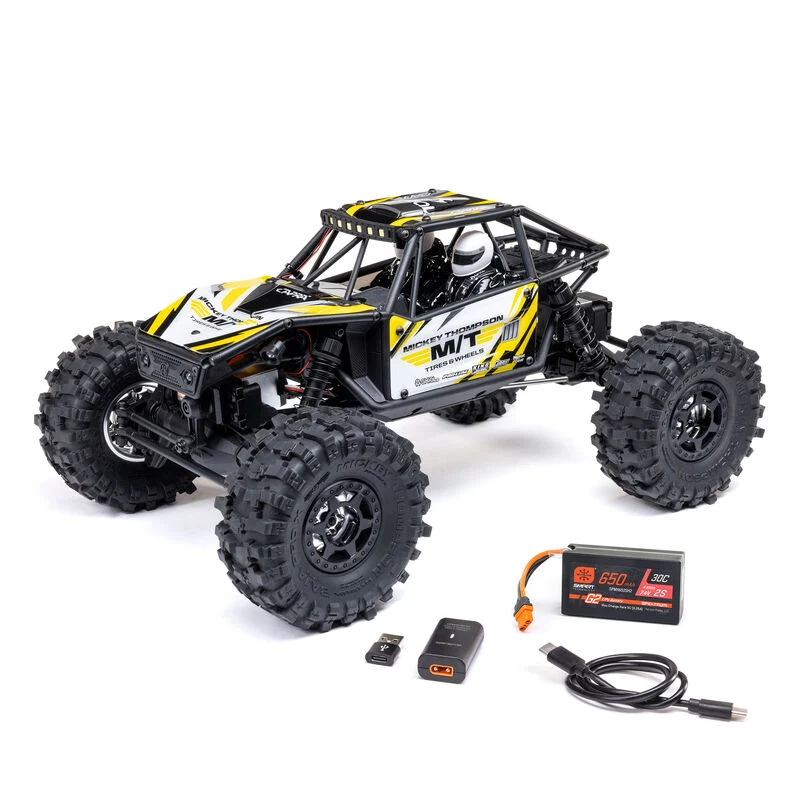

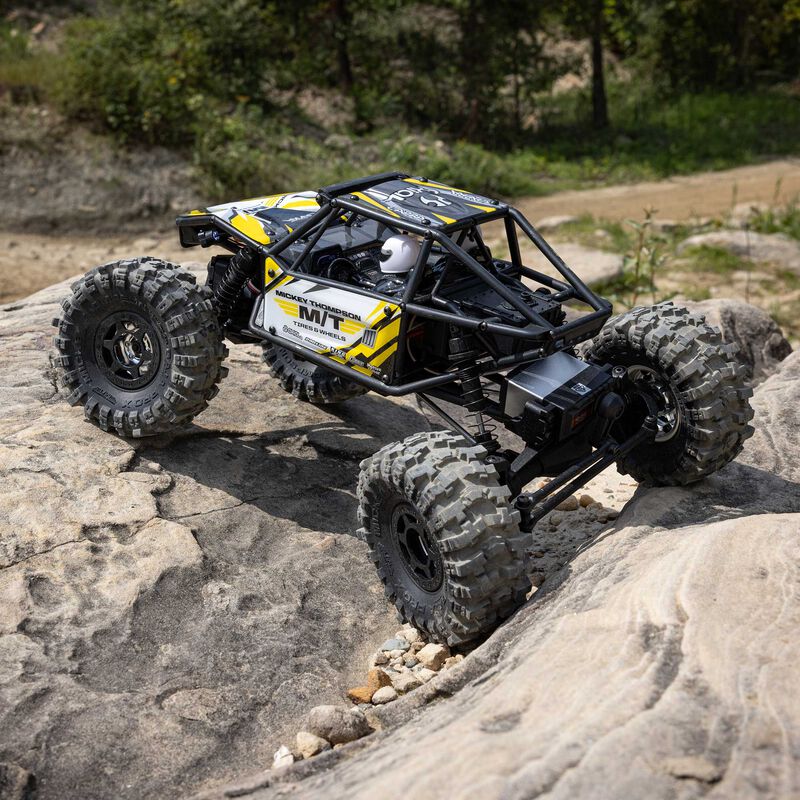

Axial 1/18 UTB18 Capra 4WS 4WD Trail Buggy RTR with Battery & Charger, Yellow

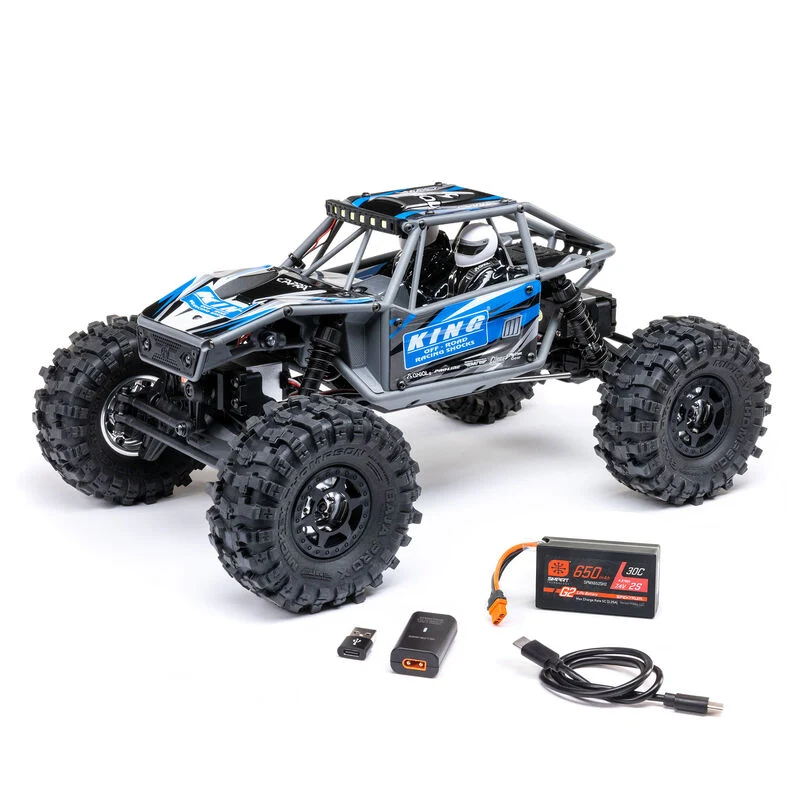

Axial 1/18 UTB18 Capra 4WS 4WD Trail Buggy RTR with Battery & Charger, Blue

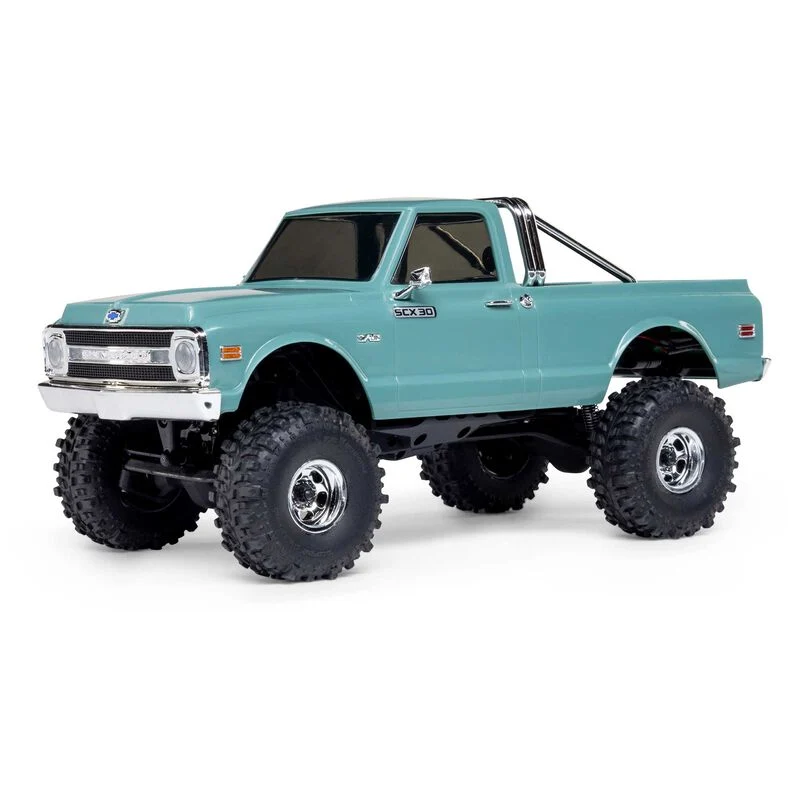

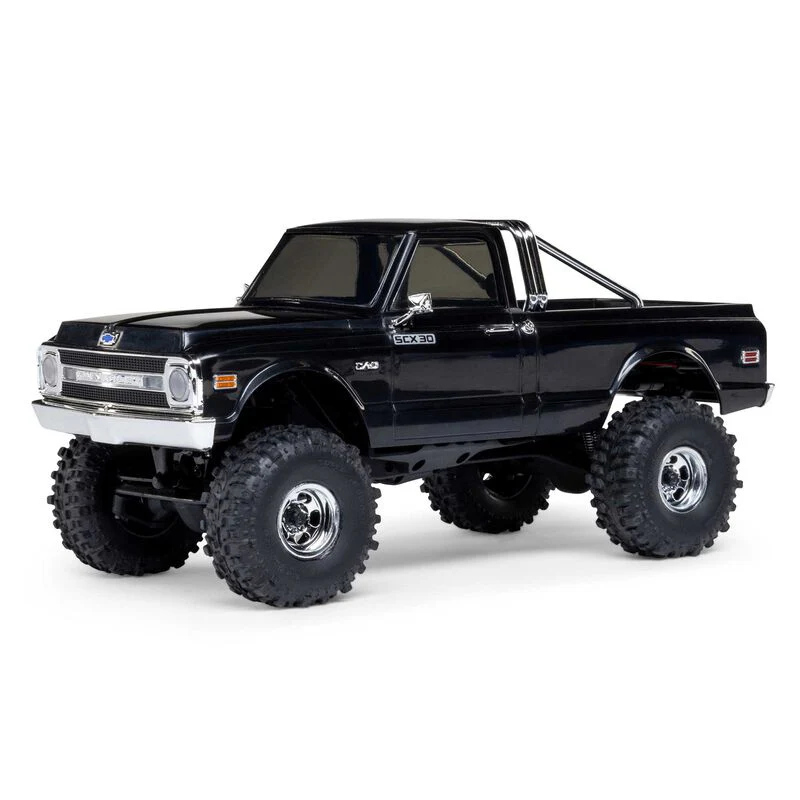

Axial 1/30 SCX30 Chevrolet K10 (Battery & Charger Included)
